产品品牌    Product brand ：

NSHW®

产品名称   Product Name：

复合式暖边间隔条（AGR+304D不锈钢）

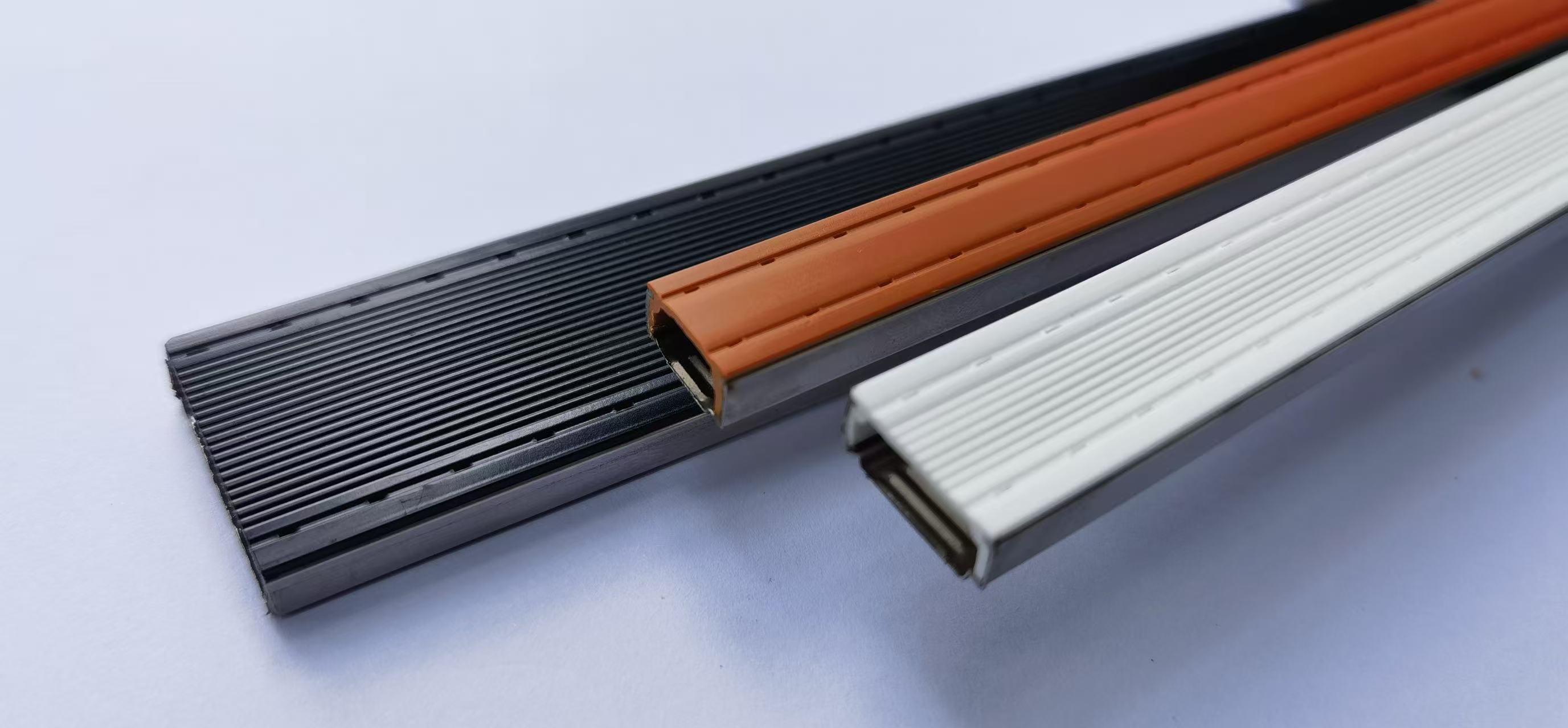

 COMPOSITE WARM EDGE SPACER - SPACER 7（AGR+ 304D stainless steel ）

产品说明  Product Description：

NSHW®复合式暖边间隔条，引进国际高端设备，采用进口医用级原材料(高阻燃高绝缘性高分子材料-AGR)和304D不锈钢材料，通过冷热共挤工艺复合而成，实现了不锈钢的高强度和AGR材料的低热性能结合，使得该款暖边条的保温隔热性能杰出，折弯简易并且强度高，产品已通过IFT、IGCC、SGS和ISO9001认证，符合EN1279标准。

The NSHW® composite warm-edge spacers are manufactured using imported high-end international equipment and medical-grade raw materials (high flame retardancy, high insulation polymer material - AGR) along with 304D stainless steel. Through a co-extrusion process involving both cold and hot phases, these spacers combine the high strength of stainless steel with the low thermal conductivity of AGR material, resulting in exceptional thermal insulation performance. They are easy to bend, the product has passed IFT, IGCC, SGS and ISO9001 certification and meets the EN1279 standard.

性能特点  Performance characteristics:

1、热传导系数低至λeq=0.42W/(m·k)。

The heat conduction coefficient is as low as λeq= 0.42 w/(m · K) .

2、大幅度减少结露现象，防止霉菌滋生，使居住更舒适。

Greatly reduce the phenomenon of dew, prevent the growth of mold, so that more comfortable living.

3、经实验验证的0.1mm不锈钢薄片能有效阻隔水汽。

The 0.1 mm stainless steel sheet can effectively block water vapor.

4、优异的阻燃、降噪性能，可有效提高建筑安全和生活质量。

Excellent flame retardant, noise reduction performance, can effectively improve building safety and quality of life.

5、优异的折弯性能，可适用于常规的自动冷折弯，满足生产过程中的任何折弯角度要求。

Excellent bending performance, can be applied to conventional automatic cold bending, to meet the production process  of any bending angle requirements.

6、优异的耐候性，可适应不同的气候条件。

Excellent weather resistance, can adapt to different climate conditions.

7、有广泛的二道密封胶相容性能，如聚硫胶、硅酮胶、硅酮结构胶、丁基密封胶等。

Has a wide range of secondary compatibility,Such as Polysulfide sealant 、Silicone sealant、silicone structure sealant  、 butyl sealant .

产品规格  Product specifications:

可定制特殊规格、特殊颜色的暖边间隔条。

Customizable warm edge spacing strips with special specifications and colors.
